Precision Cadmium Electroplating of a Screw for the Aerospace Industry
New Method Plating Co., Inc. performed the cadmium plating for an aerospace industry customer who required the services for these cadmium and yellow screws. Strict quality requirements influenced this customer to turn to New England’s New Method Plating Co., Inc., which has been in business since 1931. New Method Plating Co., Inc. is NADCAP accredited, ISO 9001:2015 AS9100 certified, and long experienced at meeting military standards. In addition to the firm’s customary quality testing to NADCAP requirements, Fisher x-ray technology allows precise thickness testing.

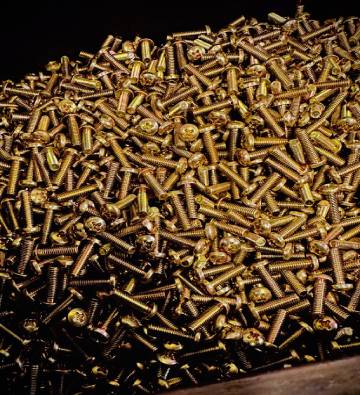

These 8-32 x 0.401 screws were plated and finished to a tightest tolerance of 0.0003″ – 0.0006″ thickness. The project included cleaning, plating, baking and chromating on an automated station return plating line. The parts were made from 8740 machined alloy steel and heat treated off-site to RC 36-40. The cadmium plating project of 115,000 screws was completed and delivered to this Connecticut aerospace customer with three days’ turnaround time.
To learn more about this cadmium plating aerospace project or other projects or services, please contact New Method Plating Co., Inc.
Precision Cadmium Electroplating of a Screw - Project Details
Product Description
This Cad & Yellow Job includes all cleaning, plating, chromating, drying processes, pre & post plate baking, final quality Inspection and signoff of the screw.
Cadmium Plating Capabilities Applied / Processes
Primary
Hydrogen Embrittlement Relief: Pre Baked and Post Baked
Cadmium Plating
Equipment Used to Electroplate Part
Automatic Station Return Plating Line
Overall Part Dimensions
8-32 x 0.401
Tightest Tolerances
0.0003 - 0.0006 Thickness
Material Used
8740 Machined Alloy Steel Heat Treated Off-Site to RC 36-40
Material Finish
.0003 Cadmium & Yellow Chromate
In Process Testing / Inspection Performed
Fisher X-Ray Technology for Precise Thickness Testing Quality Testing Done to NADCAP Requirements
Industry for Use
Aerospace
Volume
115,000
Delivery / Turnaround Time
3 Days
Delivery Location
Connecticut
Standards Met
AMS QQ-P-416C Type II, Class 2
AMS QQ-P-416C
NADCAP Accredited
ISO 9001:2015
AS9100 Certified
Product Name
Screws
